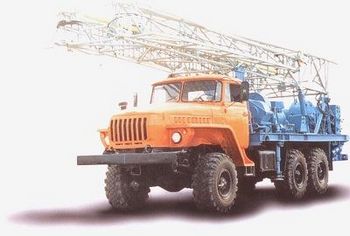

BA 15.06, 1BA15n.01, 1BA 15k.01 mobile drilling rig

ENG RUS

  • 1BA15v.02, BA15.06  mobile drilling units are designed for exploration and exploitation drilling of water wells by rotary drilling with direct flushing in soft and medium-hard rocks.
  • 1BA15n.01 mobile drilling unit is designed for cored  drilling of oil, gas and other mineral resources exploration by rotary drilling with direct flushing in soft and medium-hard rocks.
  • 1BA15k.01 mobile drilling unit is designed for rotary drilling with a back flow in soft and medium-hard rocks.

Drilling units are the group of unified drilling machines mounted on MAZ-533702, Ural-4320-1912-40 chassis, equipped with different mechanisms in accordance with the technology of well construction applied by the customer. They are known for high efficiency, simple control, reliability and comfort in service and repair.

1BA15v.02

Basic equipment of 1BA15v.02 drilling unit :

  • drilling unit (rotor Р410, two-drum hoist, mast h=18,6m with racking platform for a derrickman, mud pump НБ50, generator, setback, swivel, manifold, hydraulic breaker) on chassis MAZ-533702;
  • compressor block PК15B on a trailer MAZ-8925 for well exploration;
  • tool unit БА15-71 assy for transporting rods;
  • hydraulic jet mixer, work platform, kelly, drilling and pipe handling tool

1BA15.06

Basic equipment of 1BA15.06 drilling unit:

  • drilling block mounted on Ural-4320-1912-40 chassis with YAMZ-238NE motor has a similar design as that of 1BA15v.02, but it differs from the latter by the power take-off box with the main  friction clutch, hoist with the disk pneumatic clutch, welding transformer;
  • PK15B compressor block mounted on MAZ-8925 trailer for well completion;
  • BA15-71 assy tool block mounted on MAZ-8925 trailer for transporting drill pipes;
  • hydraulic jet mixer, work platform, kelly, drilling and pipe handling tools.

1BA15n.01

Basic equipment of 1BA15n.01 drilling unit:

  • drilling unit (rotor Р410, single-drum hoist, mast h=18,6m with racking platform for a derrickman, mud pump НБ50, generator, swivel, manifold) on chassis MAZ-533702;
  • compressor-power block НП15А with the mud pump НБ125 on a trailer MAZ-8925;
  • hydraulic jet mixer, work platform, kelly, drilling and pipe handling tool

1BA15k.01

Basic equipment of 1BA15k.01 drilling unit:

  • drilling unit (swinged rotor Р410, two-drum hoist, tillable mast h=16,5m, mud pump НБ50, generator,  swivel, manifold, hydraulic breaker) on chassis MAZ-533702;
  • compressor-energy block ПКЭ15 on a trailer MAZ-8925;
  • auxiliary block БА15-271 assy on a trailer MAZ-8925 for transporting drill pipes;
  • work platform, kelly, drilling and pipe handling tool.

All drilling units of BA15 type can be extra completed in accordance with the customer order:

  • NP15A pump-power unit with the pump of NB-125 type mounted on MAZ-8925 trailer;
  • PK15B compressor station mounted on MAZ-8925 trailer for well completion;
  • PKE15 compressor-energy unit (compressor, generator, welding transformer) mounted on MAZ-8925 trailer for well completion, power supply, welding works;
  • BA15-71sb tool block mounted on MAZ-8925 trailer for drill pipe transportation;
  • by mast 19,7 m high;
  • by clay mixer.

Drill units

1BA15v.02
BA15.06

1BA15n.01

1BA15k.01

 Safe load capacity, kN (ton force)

196 (20)

196 (20)

196 (20)

Rated drilling depth, m

500             300

1000

250

- by drill pipes diameter, mm

73              89

60,3 - 63,5

150 (inner)

 Recommended drilling diameter, mm

- Starting diameter

394

295

1270

- Ending diameter

190,5

93

490

 Power drive of units:

 - drilling unit

YAMZ-236 or YAMZ-238
propelling motor of the chassis

- PK15B compressor unit

YAMZ-236 diesel motor

- PKE15 compressor-energy unit

YAMZ-236 diesel motor

- NP15 pumping-power unit

YAMZ-236 diesel motor

 Drilling drawworks:

- pulling capacity on drilling drum, kN (ton force)

51 (5,2)

51 (5,2)

51 (5,2)

Hoisting block lift speed, m/sec:

    - YAMZ-236 diesel motor

0,2...1,39

0,2...1,39

0,2...1,39

    - YAMZ-238 diesel motor

0,14...1,53





 Auxiliary winch:

(1BA15v.02)

--

--

- pulling capacity on auxiliary drum,
kN (ton force)

9,8 (1)

--

--

- hoisting block lift speed, m/sec

0,5...1,2

--

--

 Auxiliary winch (bailing winch):

(BA15.06)





- pulling capacity of auxiliary (bailing) drum, kN (ton force)

24,5 (2,5)

--

24,5 (2,5)

- hoisting block lift speed, m/sec

0,38...1,6

--

0,38...1,6

Mast:

Jackknife drilling mast with opened front edge

    - type

Vertical

tillable

    - distance between rotary table and crownblock, m

15,5

15,5

13,5

    - length of drill pipe stand, m

12

12

9

 Rotary table:

R410

 R410

R410 with speedreducer

    - bore diameter, mm

410

410

    - max torque N*m (kgf*m)

7840 (800)

9800 (1000)

    - rotations, sec-1 (rpm)

1,08 (65) ... 4,08 (245)

0,25 (15)...4,08(245)

 Mud pump:

NB-50

NB-50

NB-50

    - ideal supply, m3/hour (l/sec)

40,0 (11)

40,0 (11)

40,0 (11)

    - max outlet pressure, MPa (kgf/cm2)

6,2 (63)

6,2 (63)

6,2 (63)

 Swivel:

BA15-33Gsb

BA15-33Gsb

BA15-33Vsb

- safe load capacity, kN (ton force)

196 (20)

196 (20)

196 (20)

- bore diameter, mm

60

60

150

Generator:

    - power, kW

30

30

30

    - Voltage, V

400/230

400/230

400/230

Capacity of racking platform for a derrickman:

- drill pipes Ø 60,3 mm, stand 12m, pcs



84/1000

--

- drill pipes Ø 73 mm, stand 12m, pcs

42/500



--

- drill pipes Ø 89 mm, stand 12m, pcs

25/300



--

 Setback:

- safe load capacity, kN (ton force)

196 (20)

196 (20)

--

Overall dimensions of drilling block

- transportation mode, mm

9880*2800*3750
10010*2800*3750

9880*2800*3750

9900*2500* 3700

NP15A pumping-power unit:

--

NB125 pump

--

    - ideal supply, m3/hour (l/sec)

--

64,8 (18)

--

    - max outlet pressure, MPa (kgf/cm2)

--

16,7 (170)

--

Compressor, compressor-energy unit with screw compressor:

PK15B

--

PKE15

- supply, m3/min

10

--

10

- pressure, MPa (kgf/cm2)

0,7 (7)

--

0,7 (7)

 BA15-71 assy tool block :

- safe load capacity, kN (ton force)

88,2 (9)

--

--

 BA15-271 assy auxiliary block :

- safe load capacity, kN (ton force)

--

--

70 (7)

 Weight of whole set, kg

28790     31900

27388

34290
